Default E30 "316e" DH/trackwork sneak attack build

Been addicted to driving an e30 this year; setting it up for downhill mountain attack and trackwork.



Initial e30 take in pics:




first Modification: BMW E90 sport catalog shift knob ordered in 5 speed pattern, Matt-B shift boot in black suede.



happy dash:



pretty much stock engine bay:



E36M PWR radiator fitted to my early 04/87 build with a few OEM parts: S54 water pipe +S52 E36M radiator hoses. Stock fan shroud is a tight fit, m20 clutch fan retained for now.



GC rear top hats installed




pit stop @ BMW for chassis viagra:





M8 and M10 nutserts installed for OEM BMW e36m factory X brace installation






X brace:

__________________
Billet Original Differential for E46 Non-m and newer cars:
http://forum.e46fanatics.com/showthread.php?t=993477

S54 swap e36M alpha N build:
http://forums.bimmerforums.com/forum....php?t=1437471

Last edited by wanganstyle : 07-06-2012 at 06:53 AM.
wanganstyle is offline   Reply With Quote
Guest Message
Tire Rack - Pure Control
Old 10-18-2011, 11:58 AM   #2
wanganstyle
Member

E30: caged enduro trailer only 24v weapon
Location: SF bay area Wangan
Join Date: Jan 2008
Posts: 77
wanganstyle can only hope to improve
Send a message via AIM to wanganstyle Send a message via Skype™ to wanganstyle
Default

Alpina West H&B vintage 1985 327"S" engine for teardown and refresh + 1.3 Motronic conversion from L-jet (thanks Market Motor Works!!)



initial teardown to longmotor:


out of this pile only the headers will be re-used. Euro intake manifold is smaller than motronic 1.3 intake



additional to being a 327"s" engine this head has been worked:



above shot:


fresh from parts washer:


Mahle Alpina 10.5:1 compression pistons (Original 327s pistons by H&B/Alpina)

Head inspected by Stirtz Machine also: (s54 rotating assembly being dropped off)

__________________
Billet Original Differential for E46 Non-m and newer cars:
http://forum.e46fanatics.com/showthread.php?t=993477

S54 swap e36M alpha N build:
http://forums.bimmerforums.com/forum....php?t=1437471

Last edited by wanganstyle : 09-06-2012 at 06:37 PM.
wanganstyle is offline   Reply With Quote
Old 10-18-2011, 12:09 PM   #3
wanganstyle
Member

E30: caged enduro trailer only 24v weapon
Location: SF bay area Wangan
Join Date: Jan 2008
Posts: 77
wanganstyle can only hope to improve
Send a message via AIM to wanganstyle Send a message via Skype™ to wanganstyle
Default

Head was worked by Engine Specialties in the late 80's:





thanks Nutzy for pointing out the stamped sprocket!


valve job detail:



272 cam:



chamber work:




Longmotor assembly

Shortblock detail:

130mm alpina M20 "i" rods. normal m20 "i" rods are 135mm







As it sits; waiting for a few little bits to delete the dizzy and drive the oil pump (L-jet cars have a dizzy gear driving the oil pump, deleting the dizzy requires a couple small gear bits to power oil shaft drive
__________________
Billet Original Differential for E46 Non-m and newer cars:
http://forum.e46fanatics.com/showthread.php?t=993477

S54 swap e36M alpha N build:
http://forums.bimmerforums.com/forum....php?t=1437471

Last edited by wanganstyle : 09-06-2012 at 06:38 PM.
wanganstyle is offline   Reply With Quote
Old 10-18-2011, 01:01 PM   #4
318aye
Senior Member

318aye's Avatar

E30: Four Door Two Seater
Location: Raleigh, NC
Join Date: Apr 2010
Posts: 2,073
318aye has much to be proud of318aye has much to be proud of318aye has much to be proud of318aye has much to be proud of318aye has much to be proud of318aye has much to be proud of318aye has much to be proud of318aye has much to be proud of318aye has much to be proud of318aye has much to be proud of
Default

Cool looking build, more info please.
__________________
Quote:
Originally Posted by Jonny Cash View Post
I didnt pm you but i remember talking to you for a while over the weekend. Youre the one that looks like Tom Brady right?

But not the one who got face planted into the pool ladder? lol
318aye is offline   Reply With Quote
Old 10-18-2011, 03:40 PM   #5
wanganstyle
Member

E30: caged enduro trailer only 24v weapon
Location: SF bay area Wangan
Join Date: Jan 2008
Posts: 77
wanganstyle can only hope to improve
Send a message via AIM to wanganstyle Send a message via Skype™ to wanganstyle
Default

thanks!

car is a 1987 325e, delphin 5 speed black sedan, non-sport model.

Original was 2.93 final drive open, I have installed a 188mm Kaaz 1.5way LSD + 188mm 3.15 ratio final drive. This is a rather noisy aftermarket (japanese) LSD unit. I wish it was a 2 way, I will be trying to install 2 way guts into it -1.5 is probably better for 80% of people for tracking etc but 2 way is more fun IMO.

Original 5 speed gearbox G260, Stock clutch. This is a 1987 ETA model and has the 96mm-12M Guibo and driveshaft - I am tough on guibo :P
Z3 shift lever installed with bushing service.

m20b27 Engine is a E model, it has been left alone.

Power steering, AC removed and shelved for later use.
Stock fan shroud removed for e-fan upcoming install.



incoming:

M20 Alpina 2.7L is rated in 1985 @ 185hp. that was with L-Jet, Now with Digital ignition and proper mapping (1.3 motronic USA spec)


Modernizing the M20's brains will be the goal in this project as the downhill nature of this project almost made me go with a 4 cylinder engine. Weight position/bias and reduction with focus on rear traction and chassis stability airborne +over very rough surfaces (tarmac rally, occasional freeway wangan runs, track days), is the big picture focus of this build.

incoming exhaust items:

H&B Original Long tube headers. genuine item: 1985.
E30 325i original downpipes.
cats out to allow for leaded gas trackside
__________________
Billet Original Differential for E46 Non-m and newer cars:
http://forum.e46fanatics.com/showthread.php?t=993477

S54 swap e36M alpha N build:
http://forums.bimmerforums.com/forum....php?t=1437471

Last edited by wanganstyle : 09-06-2012 at 06:38 PM.
wanganstyle is offline   Reply With Quote
Old 10-18-2011, 05:07 PM   #6
iliad
Do Werke

iliad's Avatar

E30: '86 327i Turbo
Location: New Orleans, LA
Join Date: Jan 2009
Posts: 645
iliad is just really niceiliad is just really niceiliad is just really niceiliad is just really nice
Default

Sweet e30 man! I like where this is going
__________________
iliad is offline   Reply With Quote
Old 10-20-2011, 12:41 PM   #7
wanganstyle
Member

E30: caged enduro trailer only 24v weapon
Location: SF bay area Wangan
Join Date: Jan 2008
Posts: 77
wanganstyle can only hope to improve
Send a message via AIM to wanganstyle Send a message via Skype™ to wanganstyle
Default

Mechanical dizzy drive deleted; euro Aluminum Engine mounting arms installed (uses different hardware than usa steel arms!!!)



hooray for new rubber bits.



newest OEM rear main seal plate gasket is a MLS. yay



bellhousing support piece and engine movement stopper installed



H&B Headers installed



OEM late model 325"i" clutch installed.



intake side intact!



Euro early no PS alt bracket


ready to rock and rumble

__________________
Billet Original Differential for E46 Non-m and newer cars:
http://forum.e46fanatics.com/showthread.php?t=993477

S54 swap e36M alpha N build:
http://forums.bimmerforums.com/forum....php?t=1437471

Last edited by wanganstyle : 10-21-2011 at 12:27 PM.
wanganstyle is offline   Reply With Quote
Old 10-22-2011, 09:43 AM   #8
325eTurbo
Senior Member

325eTurbo's Avatar

E30: 325e
Location: GOLDSBORO NC
Join Date: Feb 2007
Posts: 2,830
325eTurbo is just really nice325eTurbo is just really nice325eTurbo is just really nice325eTurbo is just really nice
Default

Nice build, very orginal motor choice. Got lucky with all that head work being done already!

What wheel/tire you going with?
325eTurbo is offline   Reply With Quote
Old 10-29-2011, 12:08 PM   #9
wanganstyle
Member

E30: caged enduro trailer only 24v weapon
Location: SF bay area Wangan
Join Date: Jan 2008
Posts: 77
wanganstyle can only hope to improve
Send a message via AIM to wanganstyle Send a message via Skype™ to wanganstyle
Default

footwork is currently very close to stock, have not decided on brakes completely so wheels is still up in the air

trying to find some light forged japanese 14-15" x 7-8JJ

tires for m20 wont need to be more than 205mm-225, I'm going to try staggered rim offsets/sizes I think.
__________________
Billet Original Differential for E46 Non-m and newer cars:
http://forum.e46fanatics.com/showthread.php?t=993477

S54 swap e36M alpha N build:
http://forums.bimmerforums.com/forum....php?t=1437471
wanganstyle is offline   Reply With Quote
Guest Message
Tire Rack - Pure Control
Old 11-03-2011, 11:08 PM   #10
wanganstyle
Member

E30: caged enduro trailer only 24v weapon
Location: SF bay area Wangan
Join Date: Jan 2008
Posts: 77
wanganstyle can only hope to improve
Send a message via AIM to wanganstyle Send a message via Skype™ to wanganstyle
Default

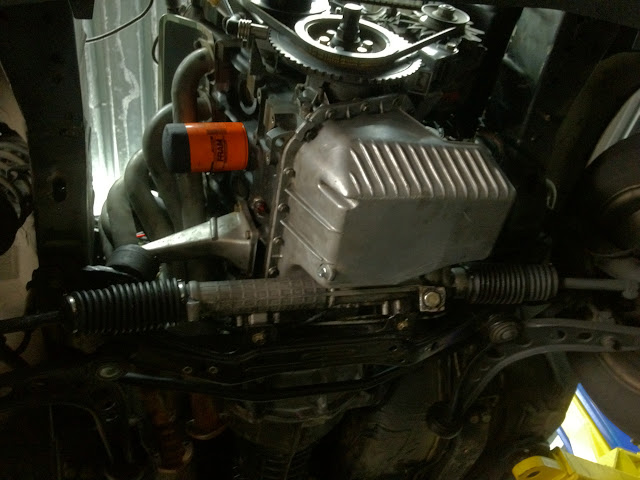

E30 has M20 Alpina Heart installed






http://youtu.be/LYhapqCxCpQ
